| Model Name |
Mercedes-Benz 1840LS Tractor |
| Engine |
| Model |
OM457LA Euro III |
| Type |
L6 Turbo-intercooled Diesel Engine |
| Displacement(cc) |
11,967 |
| Max. Power |
401hp/1900rpm |
| Max. Torque Nm/rpm |
2,000Nm/1100rpm |
| Max. Speed Km/h |
128km/hr (GCW 40 tons) |
| Max. Gradeability (%) |
45% (GCW 40 tons) |
| Weight (kg) |
| GCW |
38,000 |
| Dimensions (mm) |
| Wheelbase |
3,600 |
| Overall Length |
5,818 |
| Overall Width |
2,490 |
| Overall Height |
3,195 |
| Gearbox |
9-Speed Manual Gearbox |
| Clutch |
Single Dry Plate Clutch |
| Brakes |
Dual-Circuit Disc Brake
ABS |
| Suspension Front & Rear |
Front Parabolic Spring with Shock Absorber,
Rear Air-Suspension, Anti-Roll Bar |
| Steering |
Power Steering |
| Fuel Tank |
400 litre Alu. Fuel Tank |
| Tyres |
295/80 R 22.5 |
| Standard Equipment |
Factory Build Air Conditioning
Factory Build Radio
Long Cab with bunk
Air-Cushion Driver's Seat
Air-Deflector on Cab
Differential Lock Rear Axle |
Note: Specifications and price are subject to change without prior notification.
|
|

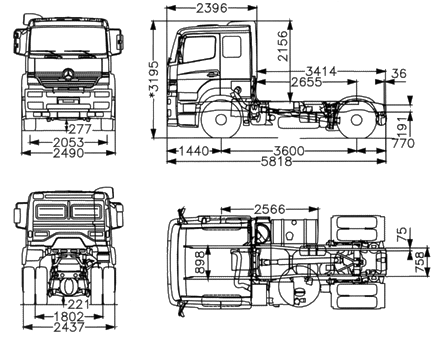

Tractor 1840LS dimensions
